4D imaging radar is redefining automotive sensing with unmatched precision, scalability and resilience. As global adoption accelerates, this technology is poised to become a cornerstone of autonomous mobility.
The automotive industry is undergoing a seismic shift, and at the heart of this transformation lies 4D imaging radar. Unlike conventional radar systems, which measure range, speed and azimuth, 4D imaging radar adds elevation to the mix—offering a richer, more complete understanding of the driving environment. With azimuth resolutions under one degree and detection ranges exceeding 300 meters, 4D imaging radar delivers the precision needed for advanced driver assistance systems (ADAS) and autonomous driving (AD) in all weather and lighting conditions.

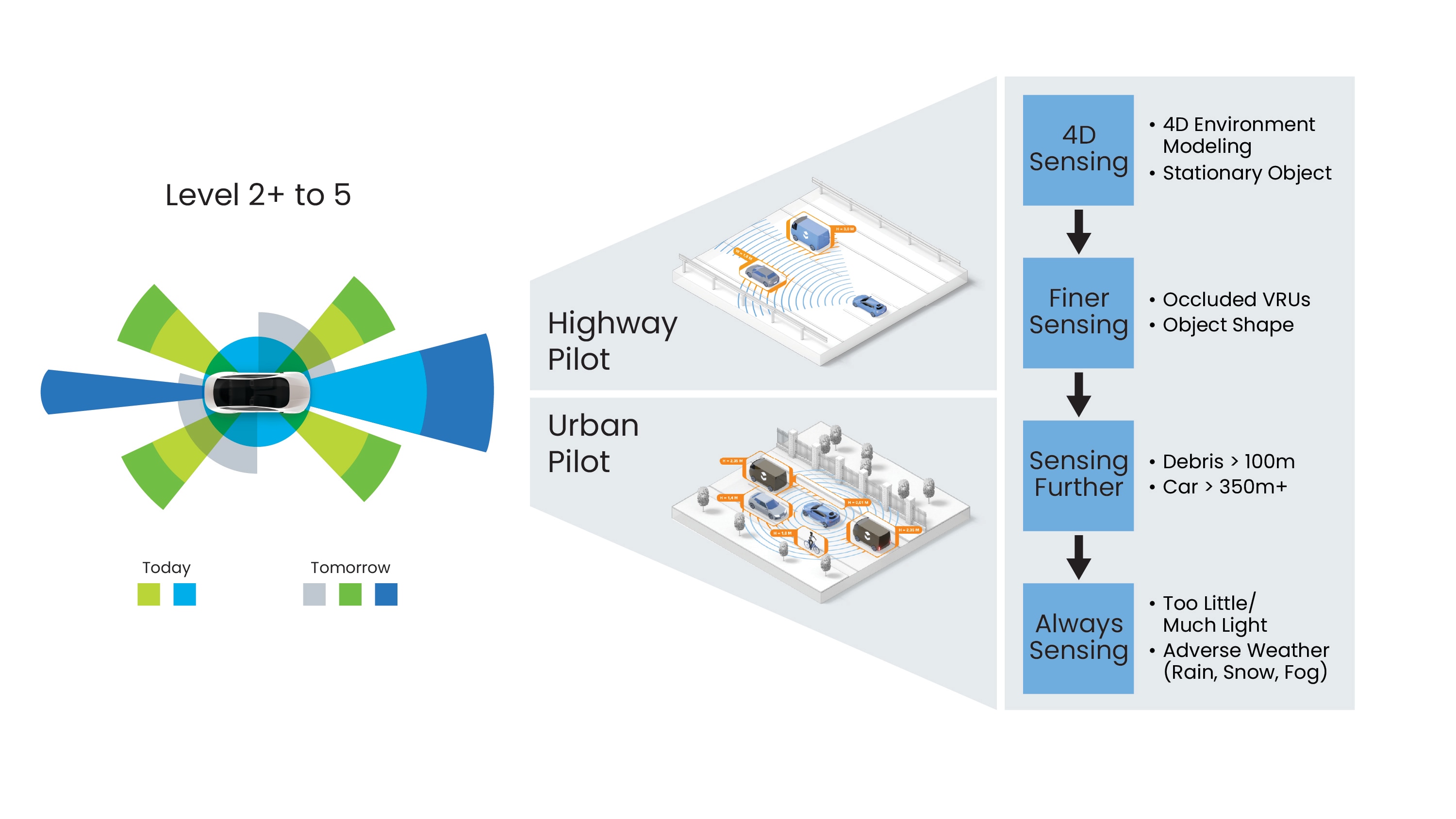

Two key use cases—Highway Pilot and Urban Pilot —highlight the critical role of 4D imaging radar. Highway Pilot requires vehicles to detect fast-moving objects at long distances, ensuring safe maneuvering at high speeds. In contrast, the Urban Pilot must navigate complex environments filled with both stationary and moving obstacles, demanding accurate and simultaneous detection of numerous objects. To meet these challenges, 4D imaging radar provides comprehensive spatial awareness, precise environmental sensing and long-range detection capabilities, all while operating reliably in adverse conditions. Unlike conventional radar, cameras or light detection and ranging (LiDAR), 4D imaging radar addresses the full spectrum of sensing requirements necessary for higher levels of autonomy.
Deployment of 4D imaging radar is accelerating worldwide, but regional strategies vary significantly. China leads with fast adoption, integrating entry-level imaging radar across entire vehicle lines to gain a competitive edge. Meanwhile, Europe and the U.S. are focusing on high-performance systems for premium models, resulting in more moderate adoption rates. By 2028, global penetration of L2+ to L5 autonomous vehicles is expected to exceed 40%, with China alone projected to surpass 50%. This divergence reflects not only differing regulatory and consumer landscapes, but also varying priorities in cost-efficiency versus performance.
The evolution of 4D imaging radar presents a wealth of opportunities. Scalability is a key advantage, with configurations like 6T8R and 8T8R enabling cost-effective deployment across a broader range of vehicles. At the same time, high-end systems such as 24T24R support advanced L3 and L4 functions, pushing the boundaries of autonomous capability.
Integration is another major benefit, as smaller, more efficient sensors reduce power consumption and simplify vehicle design. However, challenges remain such as thermal management, which is especially critical in electric vehicles, where limited airflow behind the bumper complicates cooling. critical in electric vehicles, where limited airflow behind the bumper complicates cooling. System complexity must also be carefully managed to balance performance with cost, size and power constraints. As automotive architectures shift from edge-based to centralized processing, new hurdles emerge in data bandwidth and latency, requiring robust infrastructure upgrades.
Get insight into how scalability and efficiency will drive the next wave of imaging radar deployment. Read the white paper
As vehicle architectures evolve, 4D imaging radar is proving to be a highly adaptable sensing technology. It supports both edge-based and centralized processing models, offering flexibility for original equipment manufacturers (OEMs) as they transition toward more integrated and software-defined vehicle platforms. This adaptability is crucial as the industry seeks to streamline sensor integration while maintaining high levels of performance and reliability.
Imaging radar’s ability to deliver enhanced spatial resolution, operate reliably in all weather conditions, and scale across vehicle classes makes it a strong candidate for widespread deployment. As OEMs continue to push toward higher levels of automation, the demand for robust, cost-effective and power-efficient sensing solutions will only grow. 4D imaging radar is well-positioned to meet these demands, helping to accelerate the path toward safer and more autonomous mobility.
A key enabler of cost-optimized imaging radar configurations is NXP’s S32R47 radar microprocessor unit (MPU). This high-performance MPU enables 24T24R configurations, delivering the processing capability needed for robust object detection while maintaining a compact footprint and low power consumption. Its architecture is designed to support scalable deployment across a wide range of vehicle platforms, particularly electric vehicles (EVs), where thermal constraints and energy efficiency are paramount. By reducing the number of transceiver chips required and optimizing system integration, the S32R47 enables OEMs to balance performance with cost and power efficiency. This makes it an ideal choice for broad adoption of imaging radar, especially in markets prioritizing affordability and rapid deployment.
From ADAS L2+ to L4 vehicles, 4D imaging radar is unlocking new possibilities in automotive safety and autonomy. As OEMs seek scalable, high-performance solutions, this technology stands ready to meet the moment—elevating the future of mobility.
Based in Hamburg, Germany, Huanyu has many years of experience in the automotive semiconductor industry, having worked in car access and infotainment prior to his current role in radar and V2X. Huanyu is passionate about continuously improving the safety and comfort of cars and achieving "Vision Zero" through the introduction of innovative technologies.
