Universal Sensing Modules with Wired Connectivity

UNIVERSAL-SENSING-MODULES
Active

Roll over image to zoom in

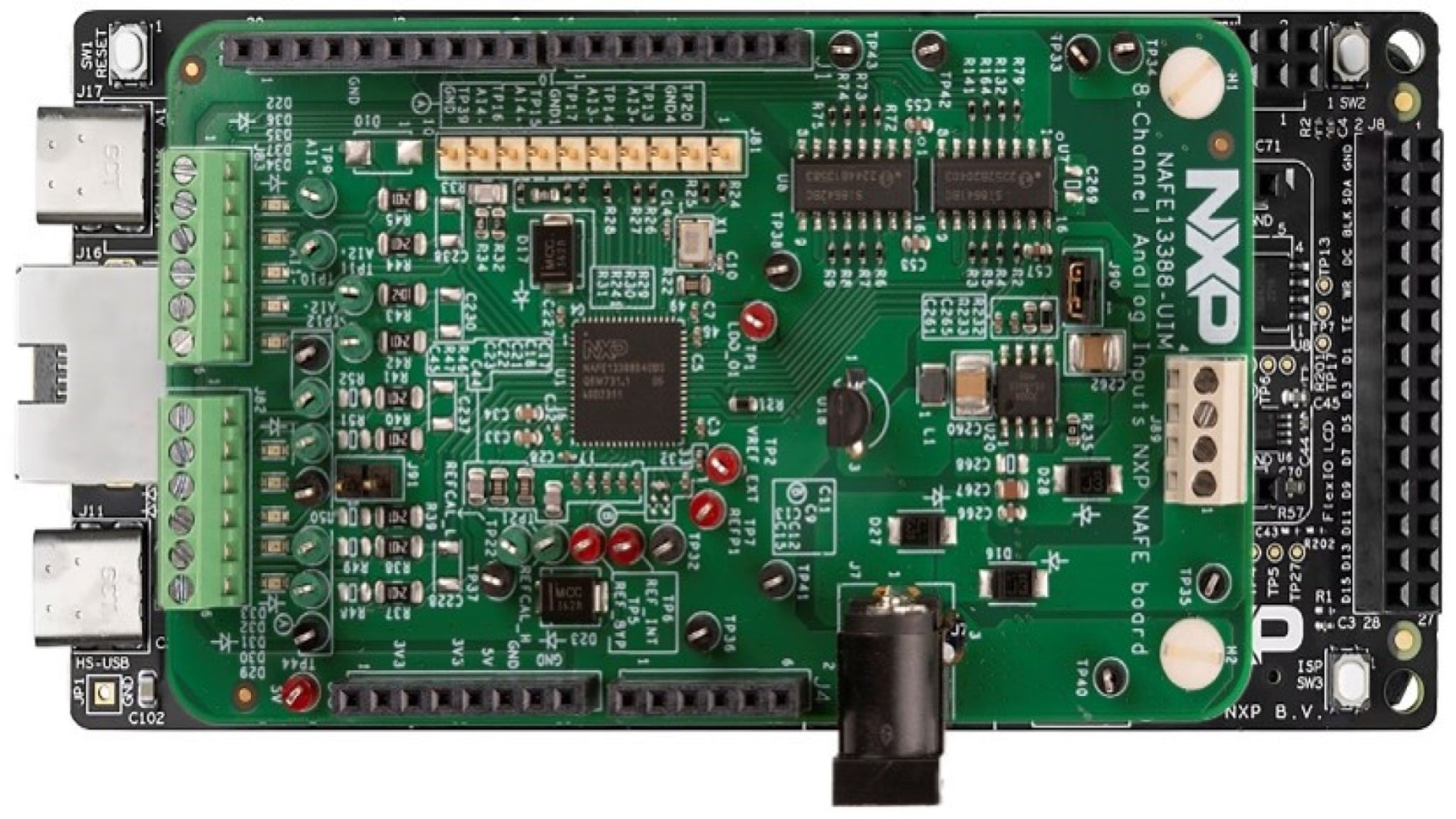

NXP's universal sensing module is a universal, software-configurable analog input solution designed for high-precision sensing and edge intelligence. It supports versatile sensor inputs (voltage, current, temperature, resistance, pressure and weight) and ensures reliable wired connectivity via CAN FD, Ethernet and USB.

With an advanced NAFE13388 analog front end and an MCX N947 MCU, this module delivers high-accuracy, high-precision data, in addition to real-time diagnostics, anomaly detection and predictive maintenance for industrial automation, lab instrumentation and smart manufacturing.

Block Diagram

Universal Sensing Modules

Universal Sensing Modules with Wired Connectivity Block Diagram
Get diagram PDF

Features

NAFE13388 Analog Front End

  • Low-power 24-bit universal input AFE
  • Voltage and current excitation sources
  • Eight single-ended or four differential channels with ranges up to ±12.5 V (AFE capable of ± 25V)
  • Configurable for voltage, current, resistance, RTD, Thermocouples and other sensors
  • Overvoltage protected up to ±36 V
  • 7.5 kV HBM ESD and IEC 61000-4-5 2 kV Surge protected inputs

MCX N947 Microcontroller

  • Dual-core Arm® Cortex®-M33 @150MHz
  • Up to 2MB dual-bank flash
  • eIQ® Neural Processing Unit
  • DSP Accelerator (PowerQUAD)
  • Smart DMA Engine
  • EdgeLock® Secure Enclave

Connectivity

  • 10/100 Mbps Ethernet and PHY
  • CAN FD Transceiver
  • HS USB Type-C connectors
  • SPI/I²C/UART connector

Expansion Options

  • Arduino® Header (with FRDM expansion rows)
  • FRDM Header

Software Ecosystem

  • FreeMASTER Run-Time Debugging Tool
  • MCUXpresso SDK
  • Application Code Hub

Buy Options

NAFE13388-UIM-Image

Click to expand

NAFE13388-UIM
Active

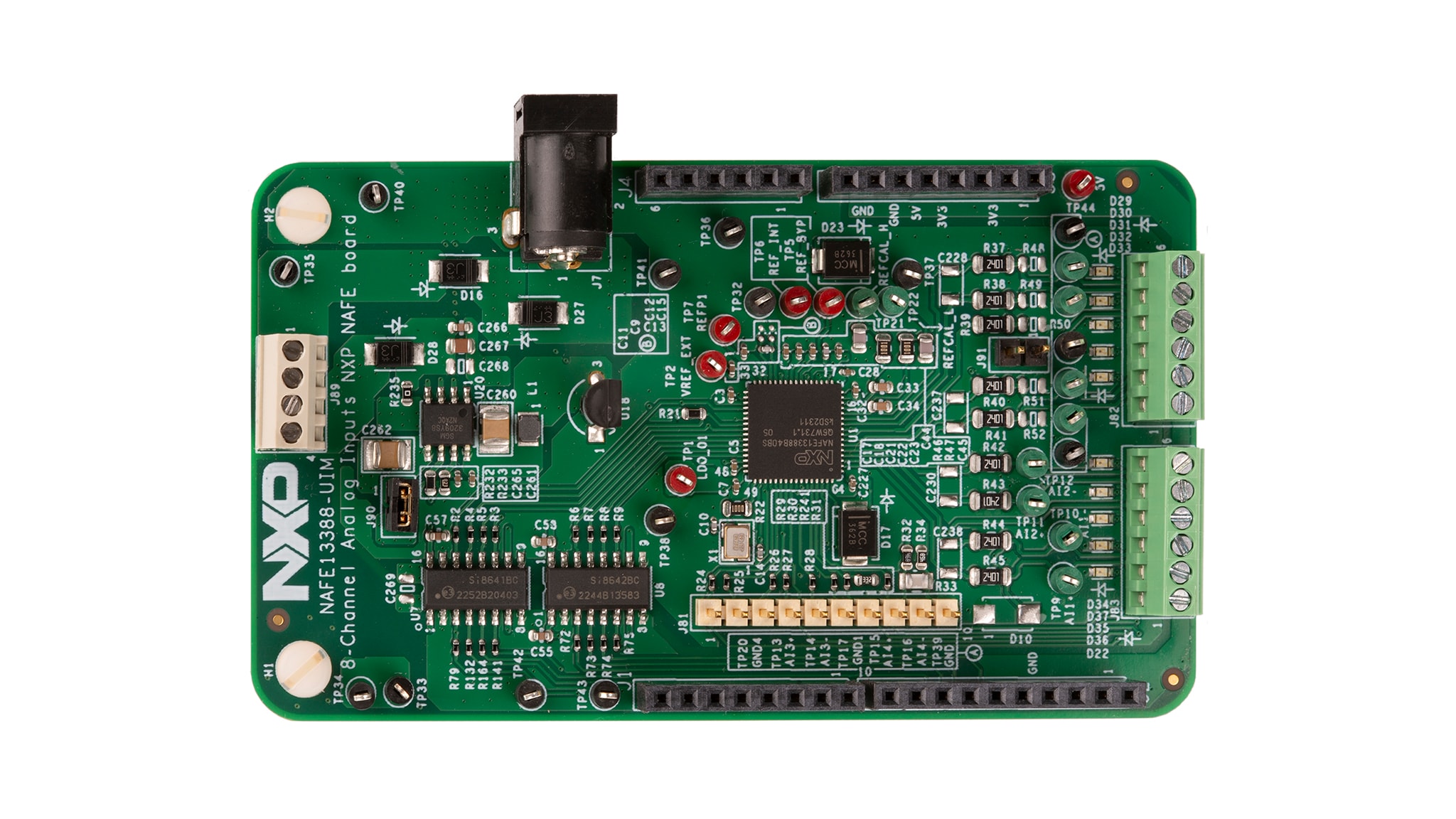

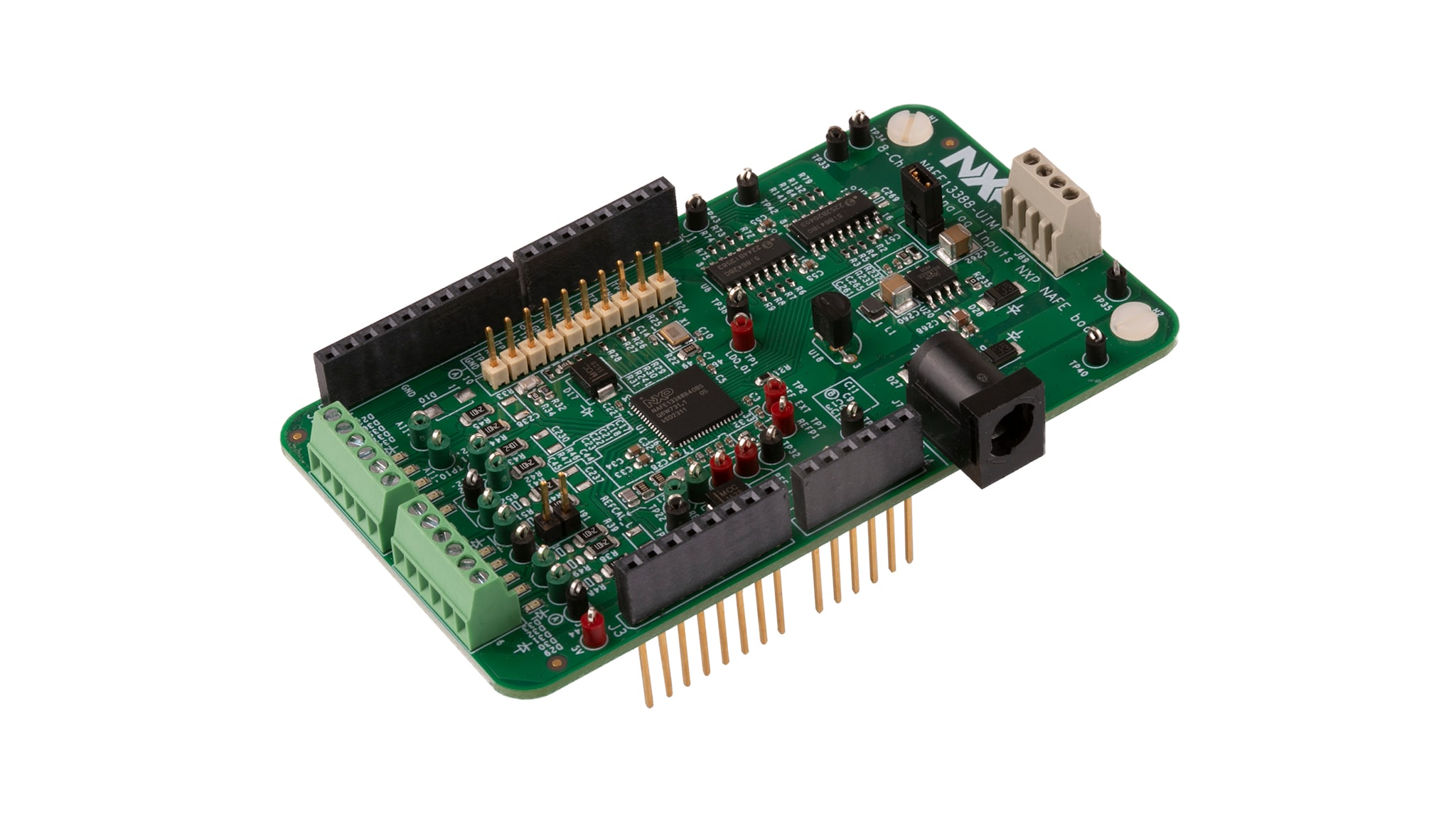

NAFE13388-UIM 8-Channel Universal Input AFE Arduino® Shield Board.

    $49.00 USD
    In Stock :19

    Normally ships 1-2 business days

    ADD TO CART
    Order from distributors
    FRDM-MCXN947-Image

    Click to expand

    FRDM-MCXN947
    Active

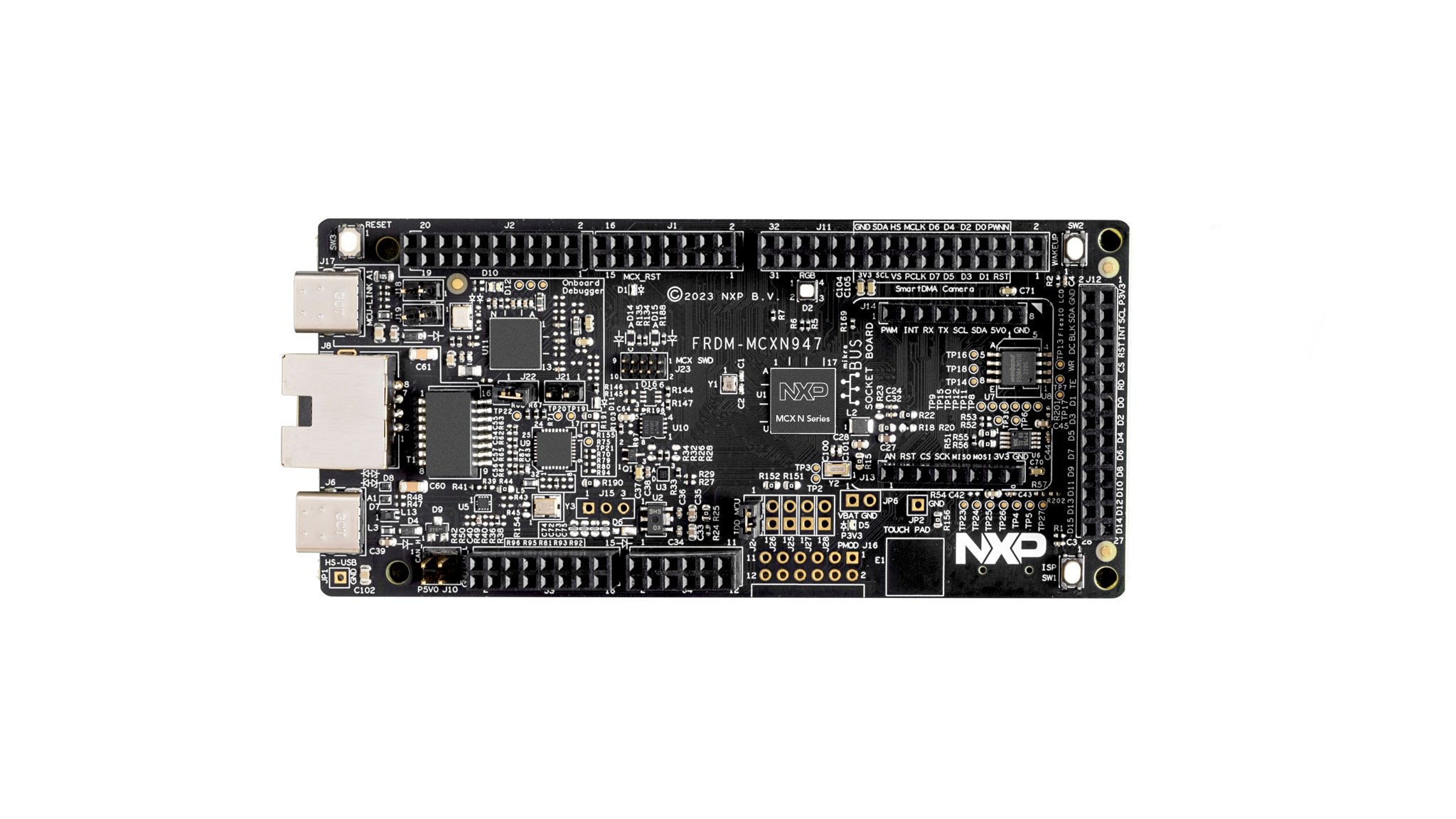

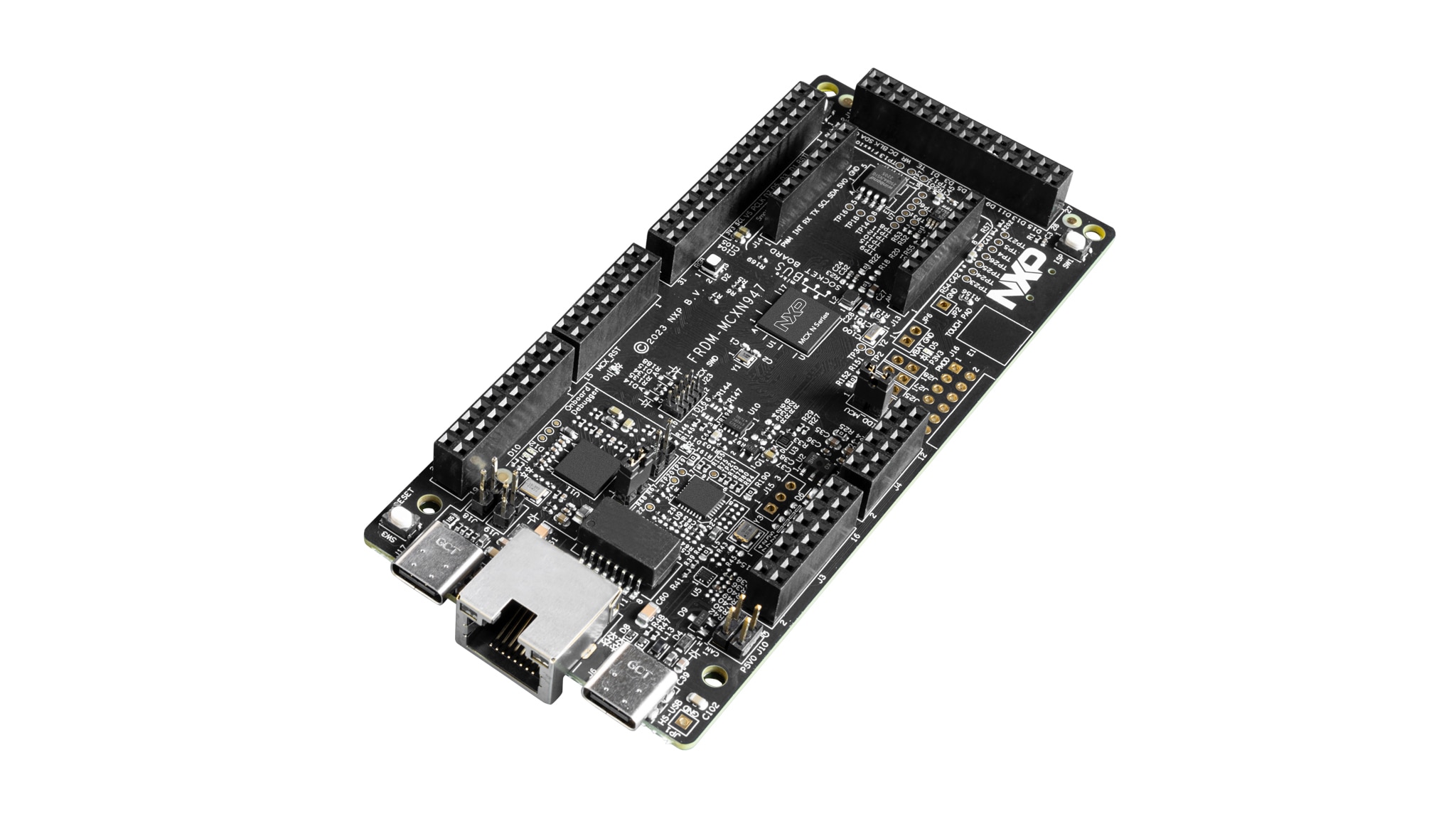

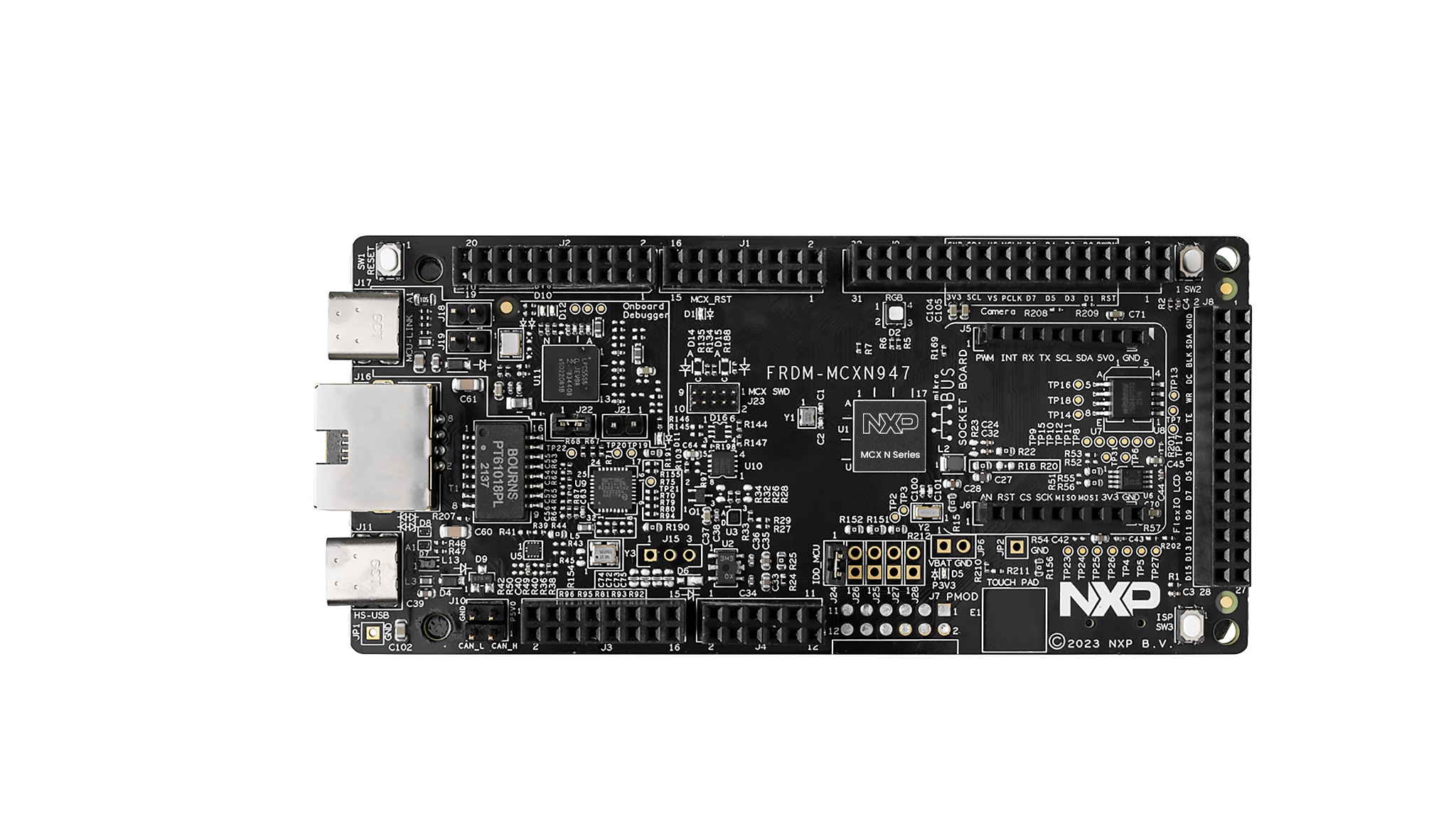

    FRDM Development Board for MCX N94 and N54 MCUs.

      $25.00 USD
      In Stock :46

      Normally ships 1-2 business days

      ADD TO CART
      Order from distributors

      Documentation

      Quick reference to our documentation types

      Filters

      2 documents

      Compact List

      Design Resources

      Software

      Quick reference to our software types.

      Filters

      2 software files

      • Application Example Software

        NAFE13388 Universal Analog Sensing Module with Wired Connectivity

        EXTERNALRev 0May 8, 2025 11:37:00NAFE13388-UNIVERSAL-MODULE-WIRED
        Download
      • Debugging and Visualization Tools

        FreeMASTER tool 3.2 (includes Lite 1.4) – Windows installer

        EXERev 3.2.5May 14, 2025 11:08:00365578 KBFMASTERSW
        Account Required
        Download
